The Shimano STEPS powered Highgate Compact E-bike, is one of the classiest and best equipped E-bikes on the market. Designed to provide comfort, control and most importantly freedom, it will revitalise your interest in cycling!
The Shimano STEPS powered Highgate Compact E-bike, is one of the classiest and best equipped E-bikes on the market. Designed to provide comfort, control and most importantly freedom, it will revitalise your interest in cycling!
Whyte

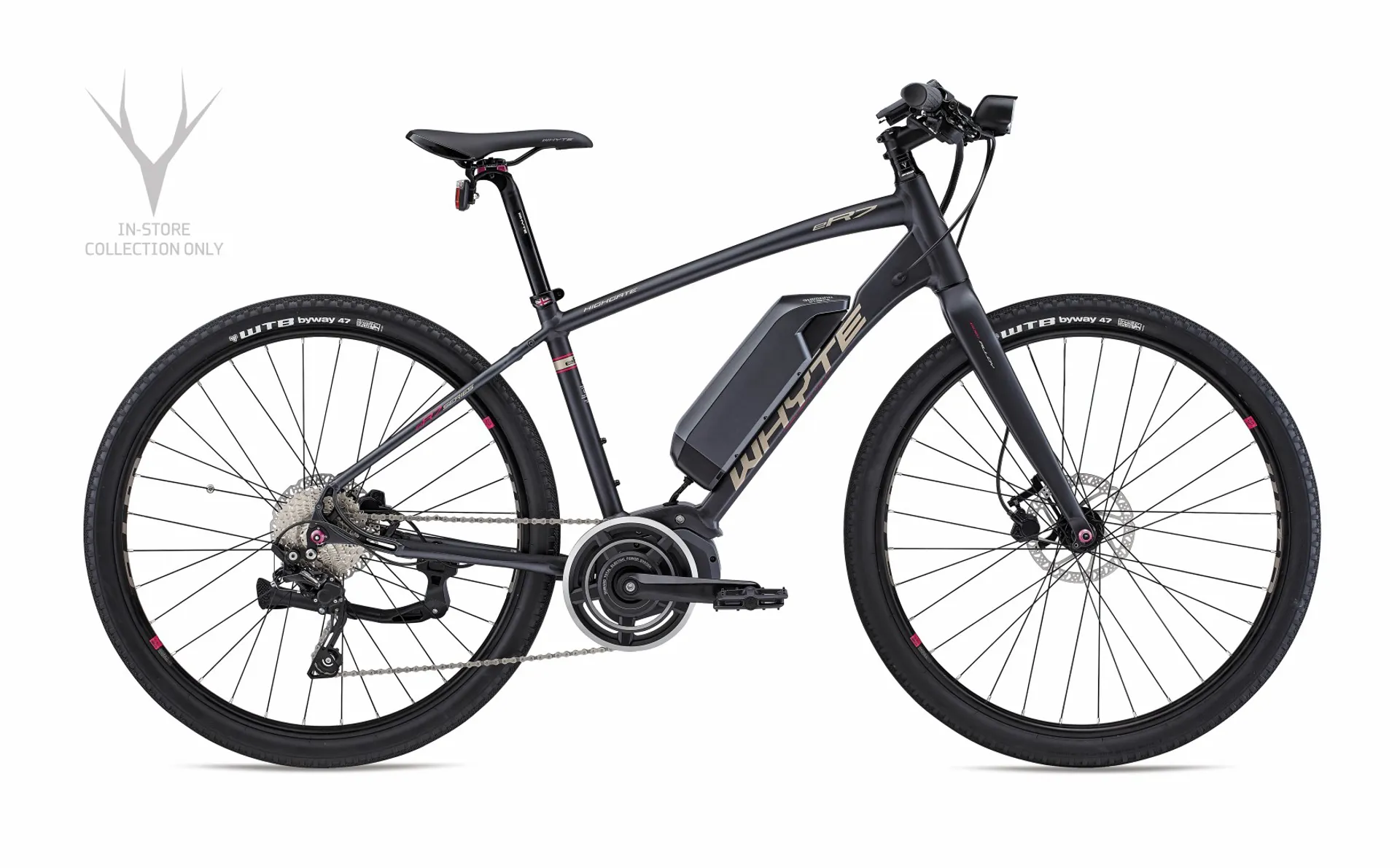

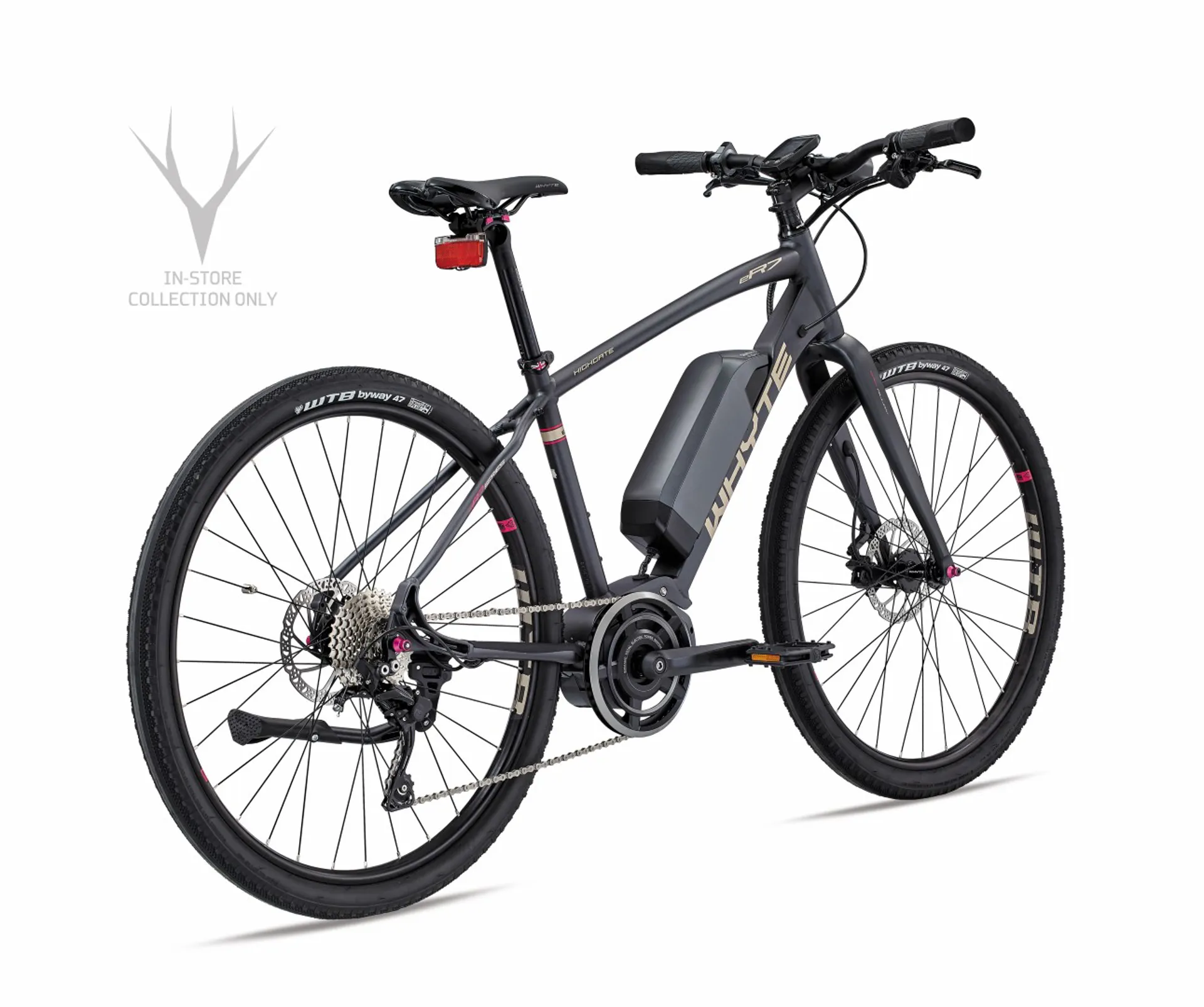

2018 Whyte Highgate Compact E-Bike Matte Granite

£2,350.00

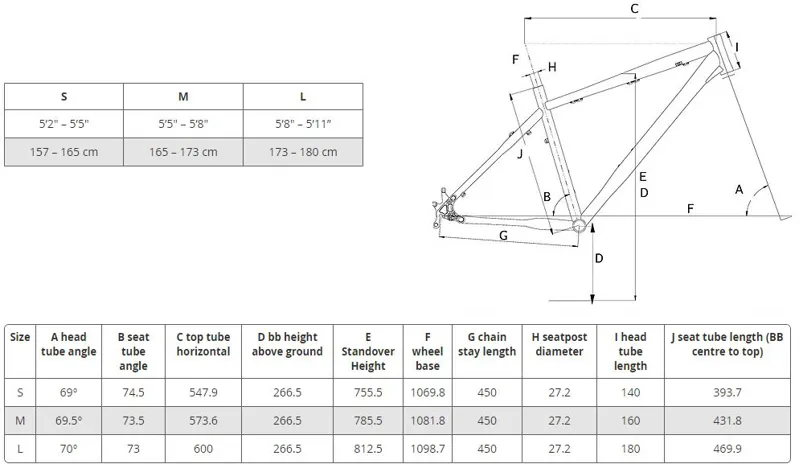

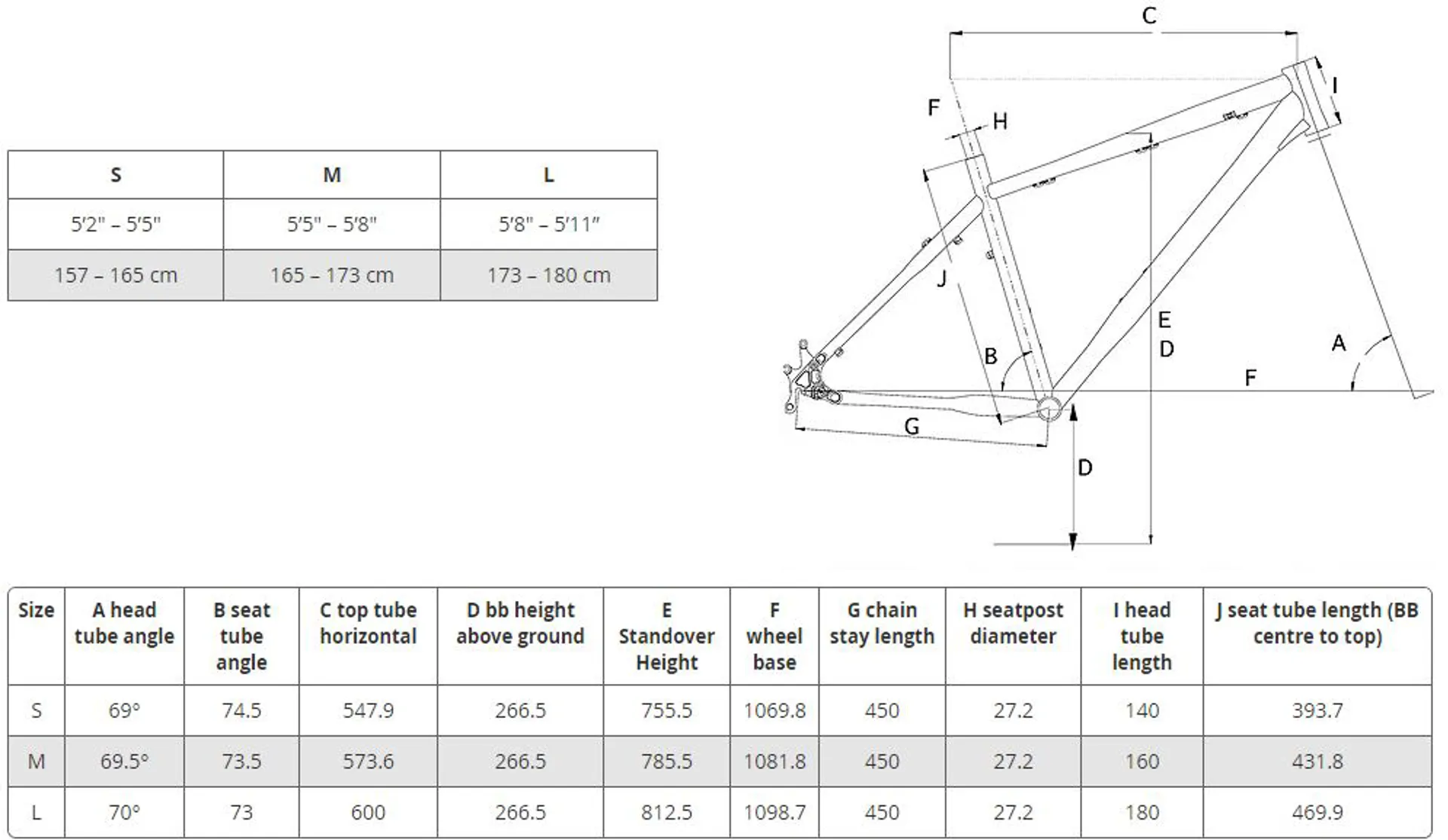

Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
I'm a Pre-launch Product. Find out more
Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

2018 Whyte Highgate Compact E-Bike Matte Granite

Season:2018

Brand:Whyte

Code:W18HIG

Whyte's Highgate is one of the best E-bikes currently on the market. Using an adapted version of Whyte's brilliant Compact geometry R7 frame and Shimano's top of the range STEPS E-bike technology, the Highgate is an all-round high quality machine. Every part of the specification is tailored to the requirements of an E-bike and its rider. Hydraulic disc brakes and their immense stopping power make total sense on E-bikes, due to the increase in weight and power. The fat 650bx47c WTB ByWay E-bike specific tyres are extremely tough for the same reason, helping to protect against punctures and premature tyre wear from the increased weight and torque. The hydraulic disc brakes and wide tyres are also very user friendly, with predictable breaking in all weather and lots of air-cushioning comfort and grip. Other neat user-friendly touches include the ergonomic grips and integrated lighting at the front of the bike. Of course the Shimano STEPS is the star of the show and a big reason as to why the Highgate is so good. With a max range of 77 miles in ECO mode, you can enjoy an entire afternoon on your E-bike without worrying about having to stop your fun. It's very easy to use with a stylish digital display mounted to the stem and system controls on the handlebars. Select which power mode you'd like and STEPS does the rest for you. There's even an in-built cycle computer so you can see how far you've covered and at what speed. A complete package, the Highgate makes the unrestricted freedom of cycling available to everyone.

Technical Information

Colour

Matt Granite with Bronze/Magenta

Frame

6061 Hydro Formed T6 Aluminium, Tapered Head Tube, Hydro Formed Down Tube, Custom Drawn, Multi Butted with Custom Whyte Dropouts and Kick Stand mount

Fork

Whyte, Straight Bladed Alloy 6061, with Flat Mount and Single Eyelets, Internal Cable Route

Rear Shock

N/A

Headset

FSA No. 42 B CUP for 1 1/8" upper and 1.5" lower

Rear Hub

Alloy, Double Sealed Cartridge Bearings, 32 Hole

Front Hub

Alloy, Double Sealed Cartridge Bearings, 32 Hole

Spokes

2.0mm, Black Stainless with Brass Nipples

Rims

WTB STp i23 650b Rims with TCS System, Pinned Joint, Tubeless Ready, 32 Hole

Tyre

WTB Byway, TCS System, DNA Compound, Folding, 650 x 47c

Shift Levers

Shimano SL-M6000, Deore, 10 Speed with STEPS SC-E6010 Display

Front Mech

N/A

Rear Mech

Shimano RD-M6000, Deore, 10-Speed, Shadow Plus

Cassette

Shimano CS-HG500, 11-34T, 10 Speed

Chain

Shimano STEPS E6090, e-Bike Specific, 10 Speed

Crankset

Crankarms for Shimano STEPS, 44T with Double Sided Chain Guard, 10 Speed

Bottom Bracket

STEPS Drive Unit E-6001 with Speed Sensor and Magnet

Seatpost

Whyte Alloy 6061, 1pcs 3D Forged, 20mm Offset, 27.2mm x 350mm, 2 Bolt Clamp

Saddle

Whyte Custom, Triple Panel Design

Handlebar

Whyte Alloy 6061, 31.8mm, 20mm Rise, 620mm Wide

Stem

Whyte Alloy 6061, S 70mm, M 80mm, L 90mm

Grips

Whyte Custom Dual Density Lock-on

Front Brakes

Tektro Auriga, 160mm Rotor, Flat Mount, Internal Routing

Rear Brakes

Tektro Auriga, 160mm Rotor, Internal Routing

Brake Levers

Tektro Auriga

Pedals

Fibre Reinforced Composite Platform

Weight

18.6Kg (including battery)

Battery

Volts:- 36 volts and 11.6ah, giving 418 watt hours. Range:- 37miles in High, 52miles in Normal and 77miles in Eco. Watts:- 250 watts continuous output, Maximum output 500 watts. Torque 50NM in high & 30 NM in eco.
