| SUSPENSION | RockShox
Boxxer Select / Super Deluxe Select+ |
| BRAKES | Formula
Cura 4 |
| DRIVETRAIN | SRAM
GX |
| WHEELS | Crankbrothers
Synthesis Alloy DH |
| WEIGHT | Frame size M (42.3 lbs)
19,2 kg |

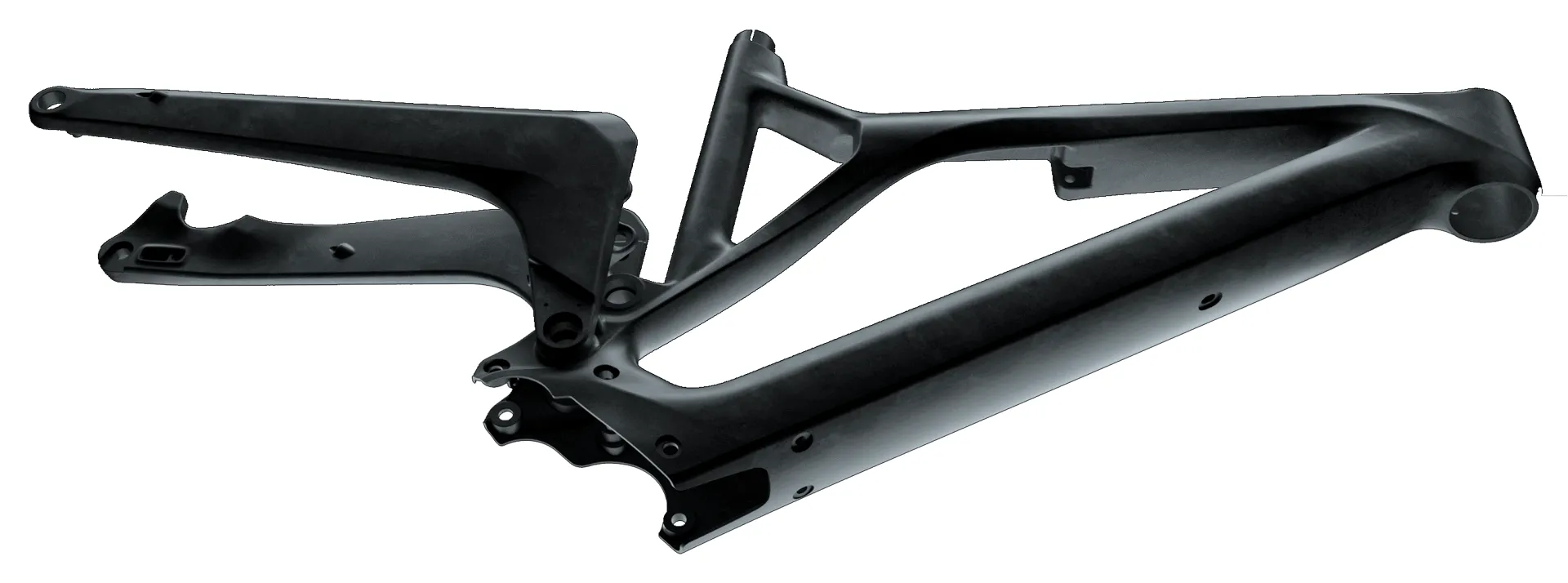

| FRAME | Forestal Alpha Box Carbon Enduro 29" TR 170
Monocoque construction / Track Ready / 170mm Travel / 2.4kg Size M |

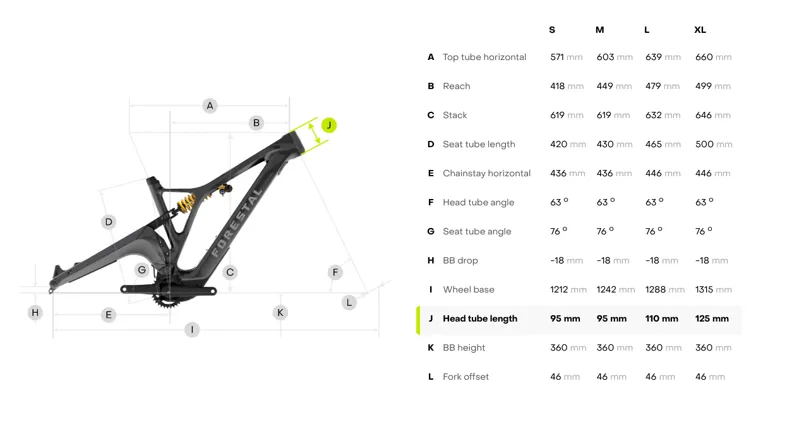

| SIZES | S / M / L / XL |

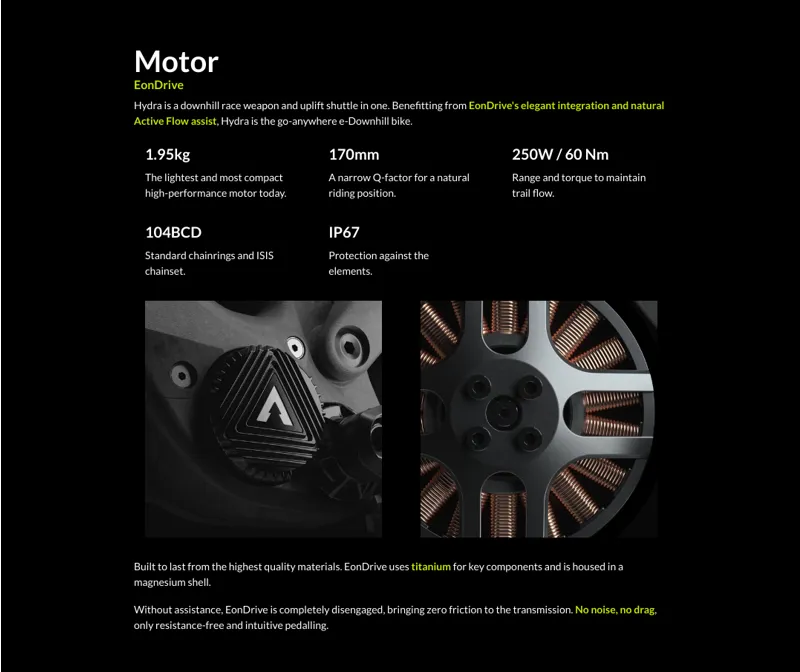

| MOTOR | Forestal EonDrive
250W / 60Nm / IP67 / 1.95kg / 165 x 105 x 147mm |

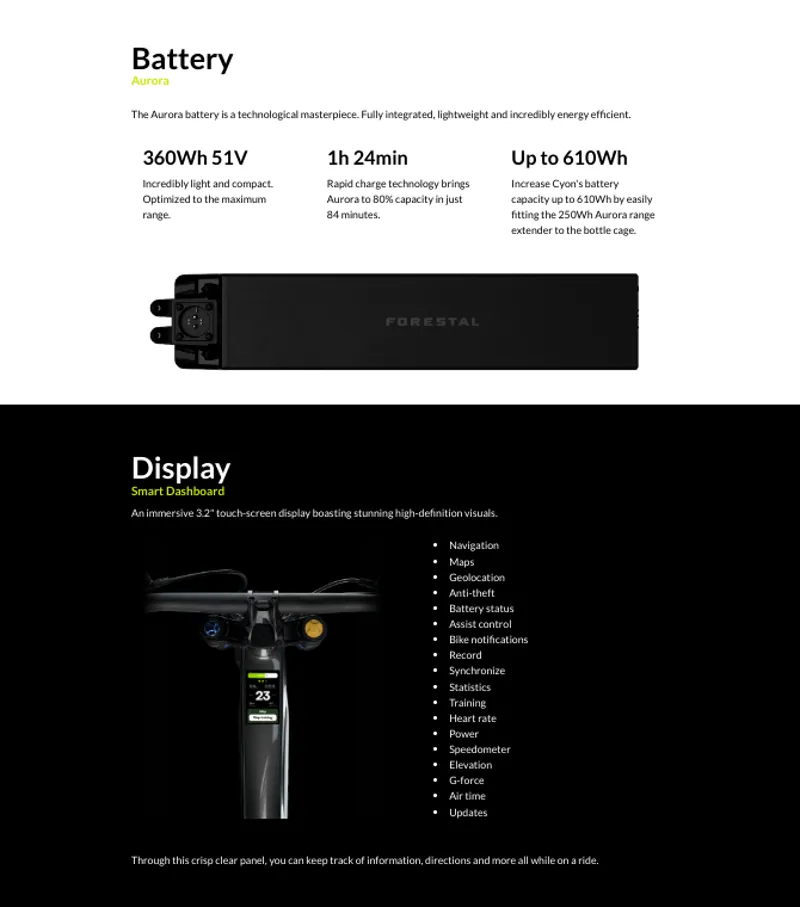

| BATTERY | Forestal Aurora Performance
360Wh / 52V / Integrated / Rapid Charge / 1.8kg / 350 x 72 x 50.5mm |

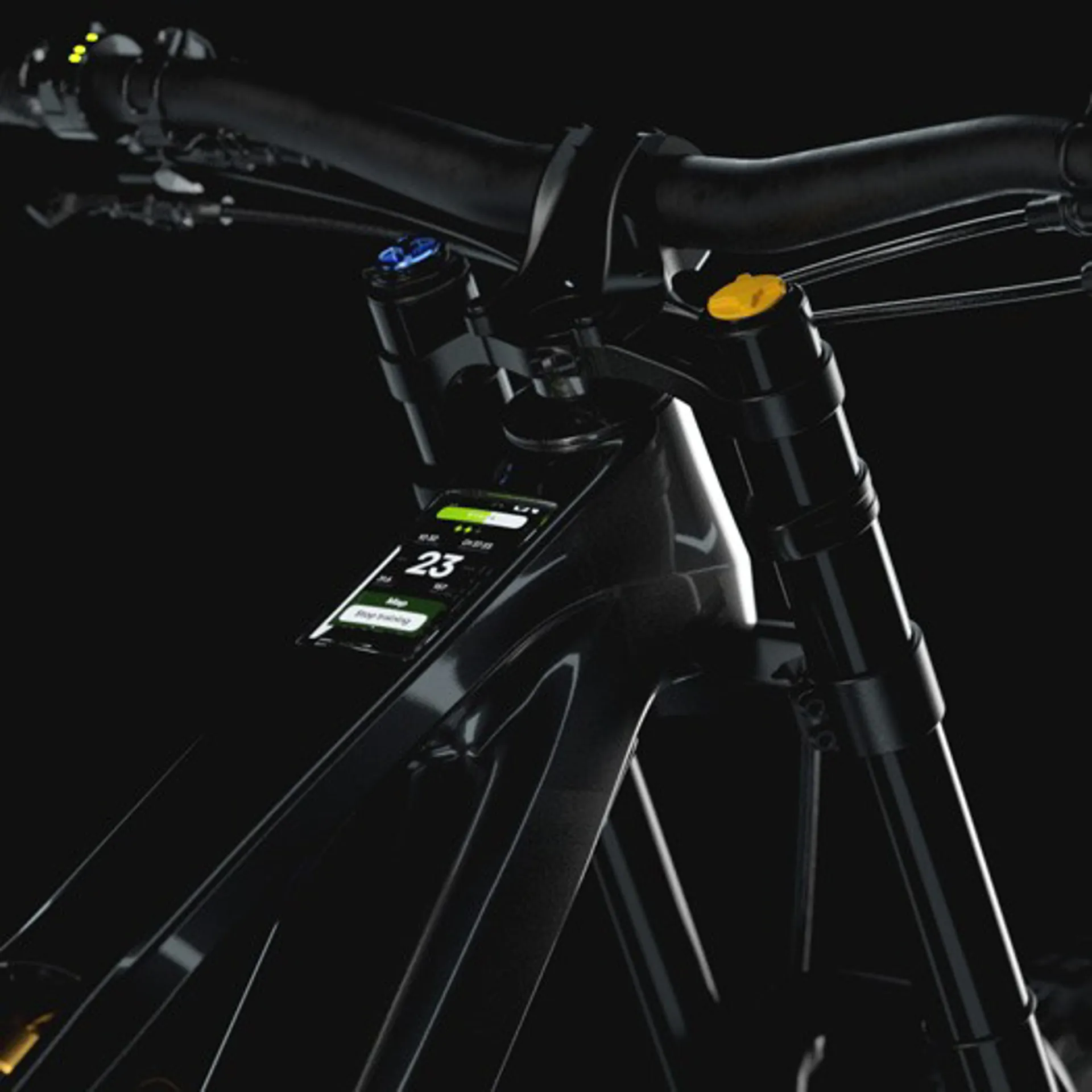

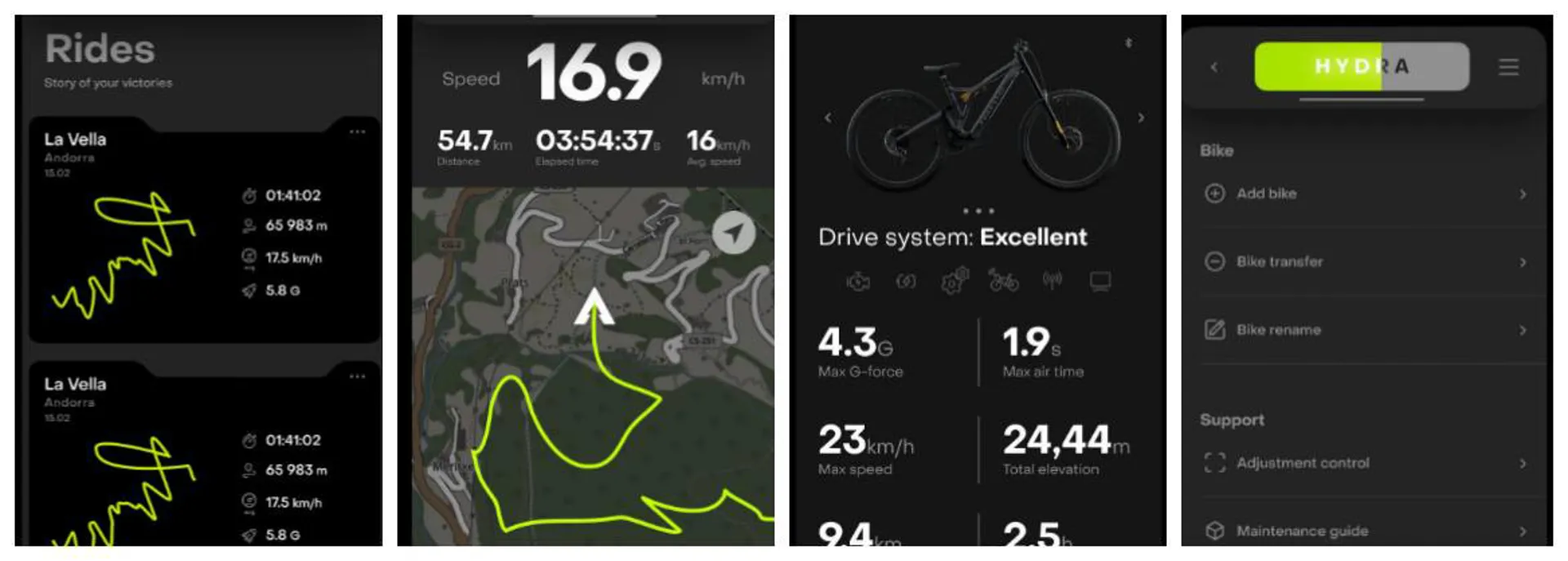

| DISPLAY | Forestal Smart Dashboard
3.2" Integrated HD Transflective touch screen / All conditions resistant |

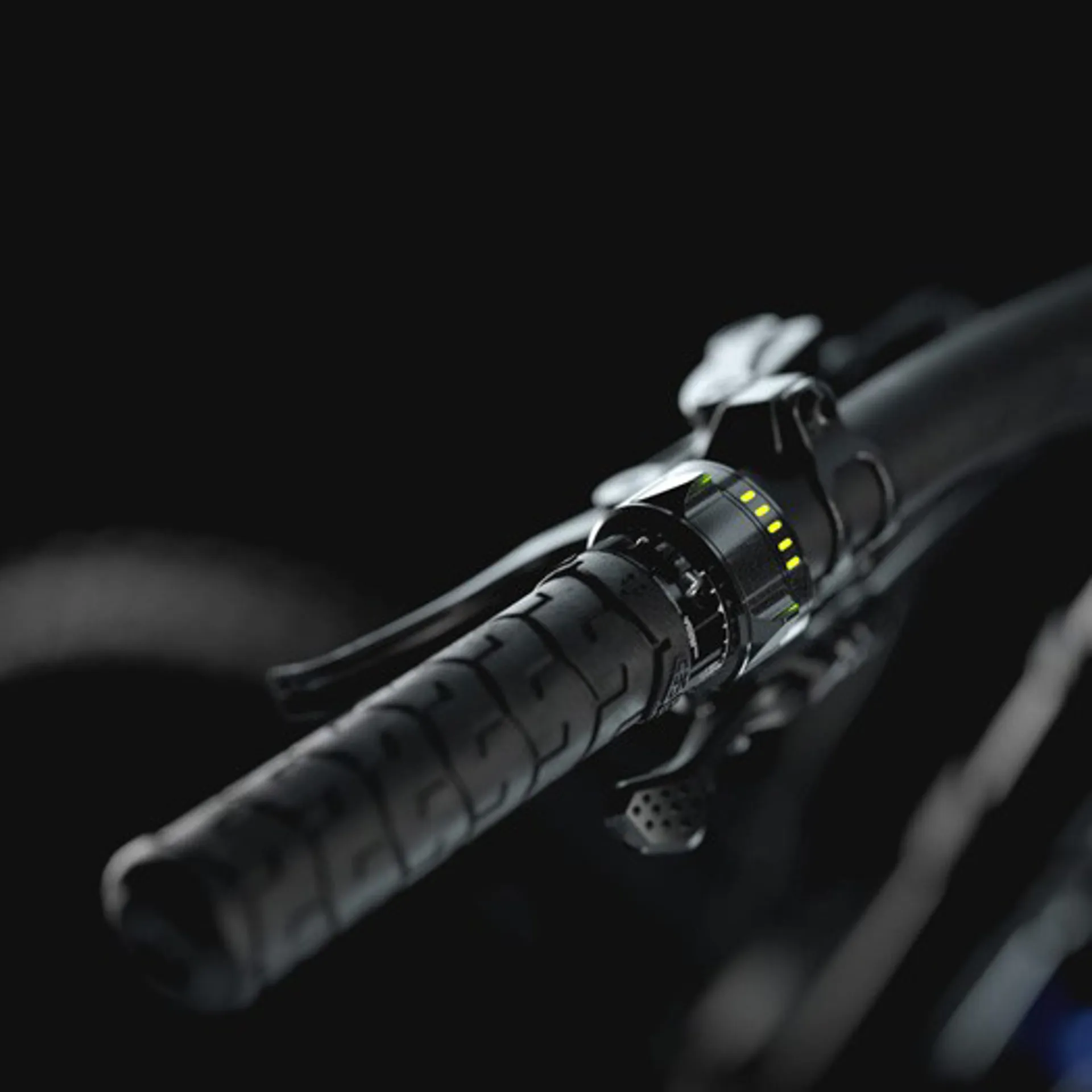

| REMOTE | Forestal Smart Trigger
3 Buttons / Battery & Assistance LED Indicators |
| FORK | Rockshox Boxxer Select 29" 180mm
Charger RC / DebonAir / Tapered / Boost 20x110 / Maxle Stealth / Offset 46mm / Extl Rebound / Low Speed Compression / Gloss Black |

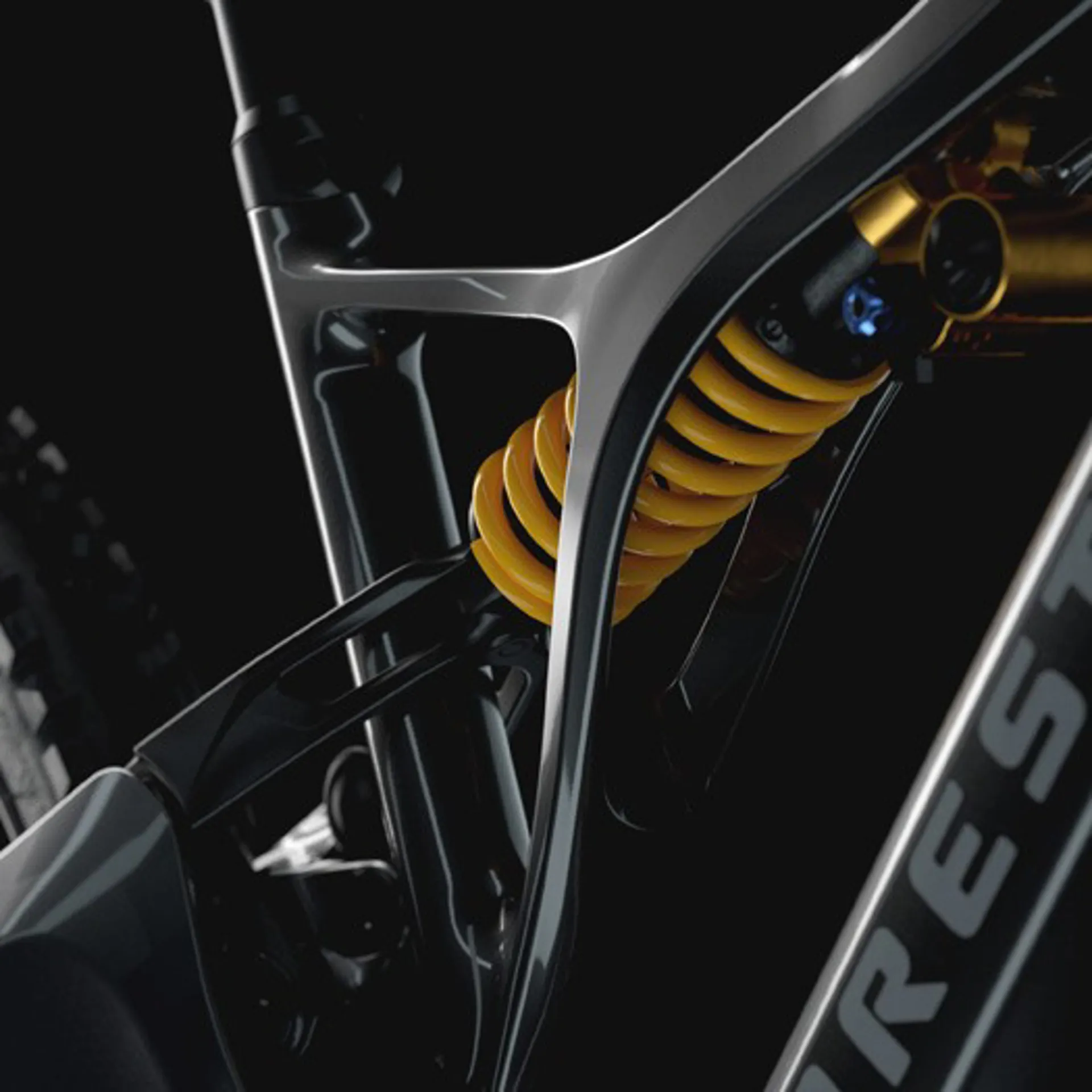

| SHOCK | Rockshox Super Deluxe Select+ Coil
Metric 230x65mm / Debonair / Extl Rebound / 2 position compression / Custom tune / Spring rates: 300 lbs on S, 350 lbs on M, 400 lbs on L, 450 lbs on XL / Black |
| HEADSET | Acros Integrated
ZS 56 Top / ZS 56 Bottom / Internal cable routing / Stainless steel bearings |
| STEM | Forestal X PP Direct Mount DH
∅ 31.8mm / 7075 T6 Aluminum CNC / Black |
| HANDLEBAR | Forestal Oxydon C 780mm
∅ 31.8mm / Upsweep 4∅ / Backsweep 6∅ / Rise 15mm / Toray T700 & T800 Carbon |
| GRIPS | Production Priv├®e CR35
Forestal x Production Priv├®e edition / 2-position adjustable (Tour / Race) |
| SEATPOST | Crankbrothers Highline 7
∅ 31.6mm / Length 125mm Size S / Length 150mm Sizes M, L / Length 170mm Size XL / Black ring / Aluminum 7076 T6 |
| DROPPER REMOTE | BikeYoke Triggy X
Custom Forestal w./ Shiftmix |
| SADDLE | Fizik Aidon X3 E-MTB
Fibre reinforced nylon / S-alloy rails / 249g / 255 x 145mm |
| FRONT BRAKE / ROTOR | Formula Cura 4 Carbon Polish 203mm
4-piston caliper / MixMaster / 6-Bolt Rotors |
| REAR BRAKE / ROTOR | Formula Cura 4 Carbon Polish 203mm
4-piston caliper / MixMaster / 6-Bolt Rotors |
| CRANKS | Praxis Carbon
Q-Factor 170mm / ISIS Drive / 104 BCD / Length 160mm Sizes S, M / Length 165mm Sizes L, XL |
| CHAINRING | SRAM X-Sync 2 Eagle
32T, 104 BCD |

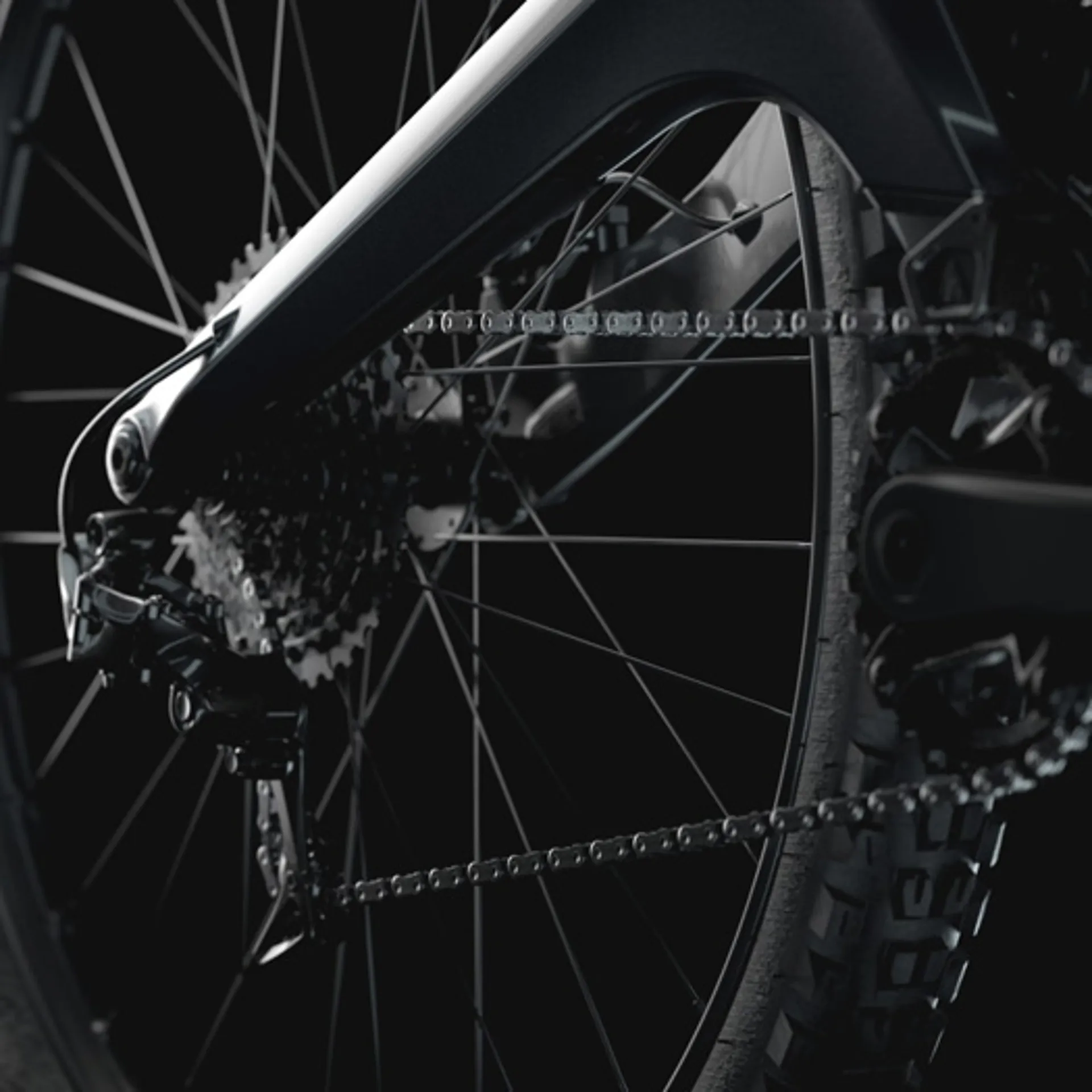

| REAR DERAILLEUR | SRAM GX
11 Speed / X-Actuation / Long cage / Colour: Black |
| HANGER | SRAM UDH
UDH Derailleur hanger / Aluminum |
| CASSETTE | SRAM PG-1130
10-42T / 11 Speed / Colour: Black |
| CHAIN | SRAM GX
11 Speed / Powerlock / Colour: Grey |
| SHIFTER | SRAM GX
11 Speed / X-Actuation / Colour: Black |
| FRONT WHEEL | Crankbrothers Synthesis Alloy 29" DH
Hub CB / 15 x 110mm Boost / Spokes Sapim E-Light / 6-Bolt / Inner Rim 31.5mm / Outter Rim 37.5mm |
| REAR WHEEL | Crankbrothers Synthesis Alloy 29" DH
Hub CB / 12 x 148mm Boost / Spokes Sapim Strong / XD Drivetrain/ 6-Bolt / Inner Rim 29.5mm / Outter Rim 36.5mm |
| FRONT TYRE | Panaracer Romero 29 x 2.4 ST 3Comp.
Super Tough / Tubeless Ready / Triple Compound / Puncture resistant wall |
| REAR TYRE | Panaracer Romero 29 x 2.4 ST 3Comp.
Super Tough / Tubeless Ready / Triple Compound / Puncture resistant wall |
