If you want to enter the world of light ebikes with a powerful motor, this is the bike for you.
If you want to enter the world of light ebikes with a powerful motor, this is the bike for you.
Mondraker

Mondraker Prime 29 - Black/Grey/Red

£1,849.99 £3,699.00 50% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

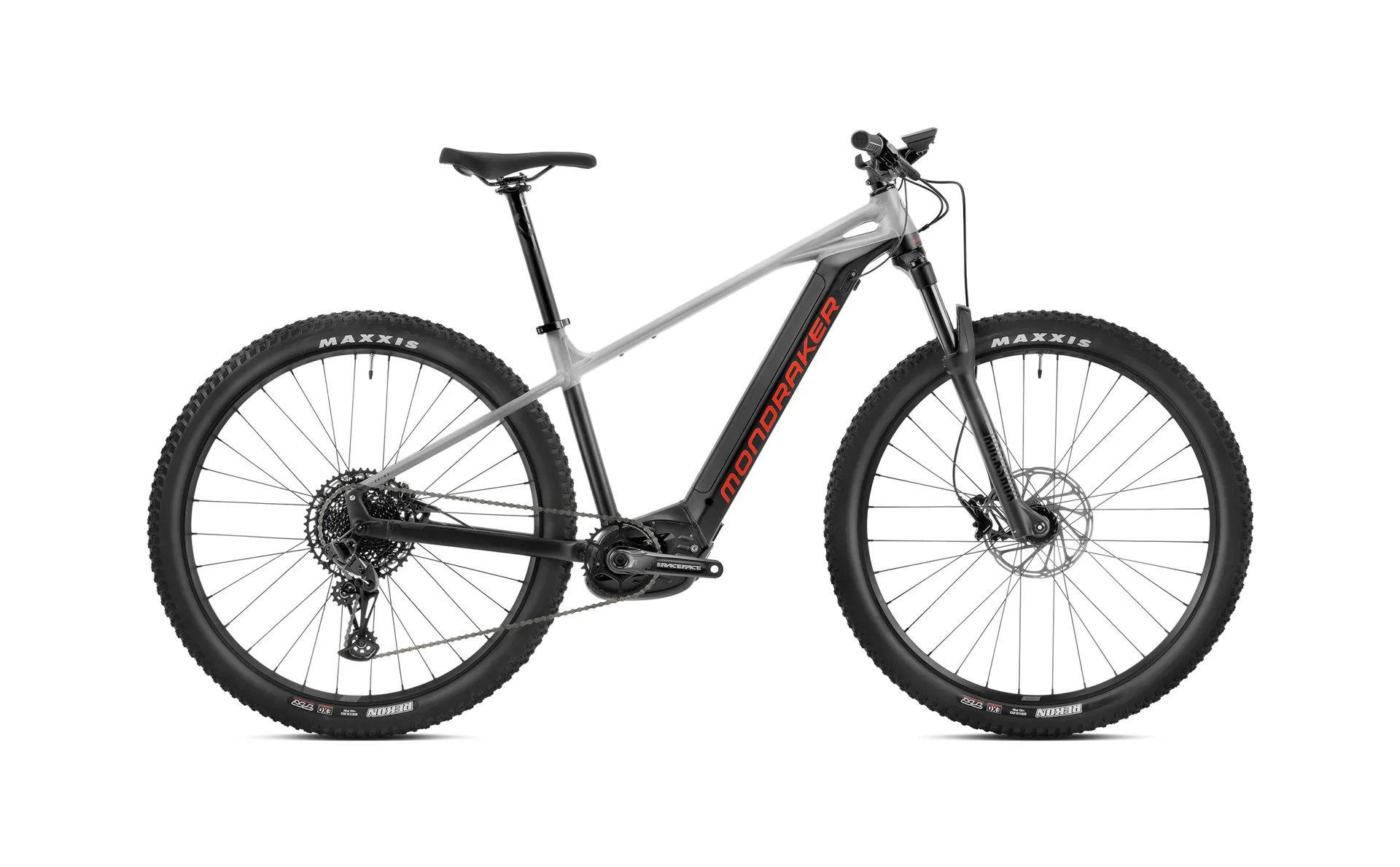

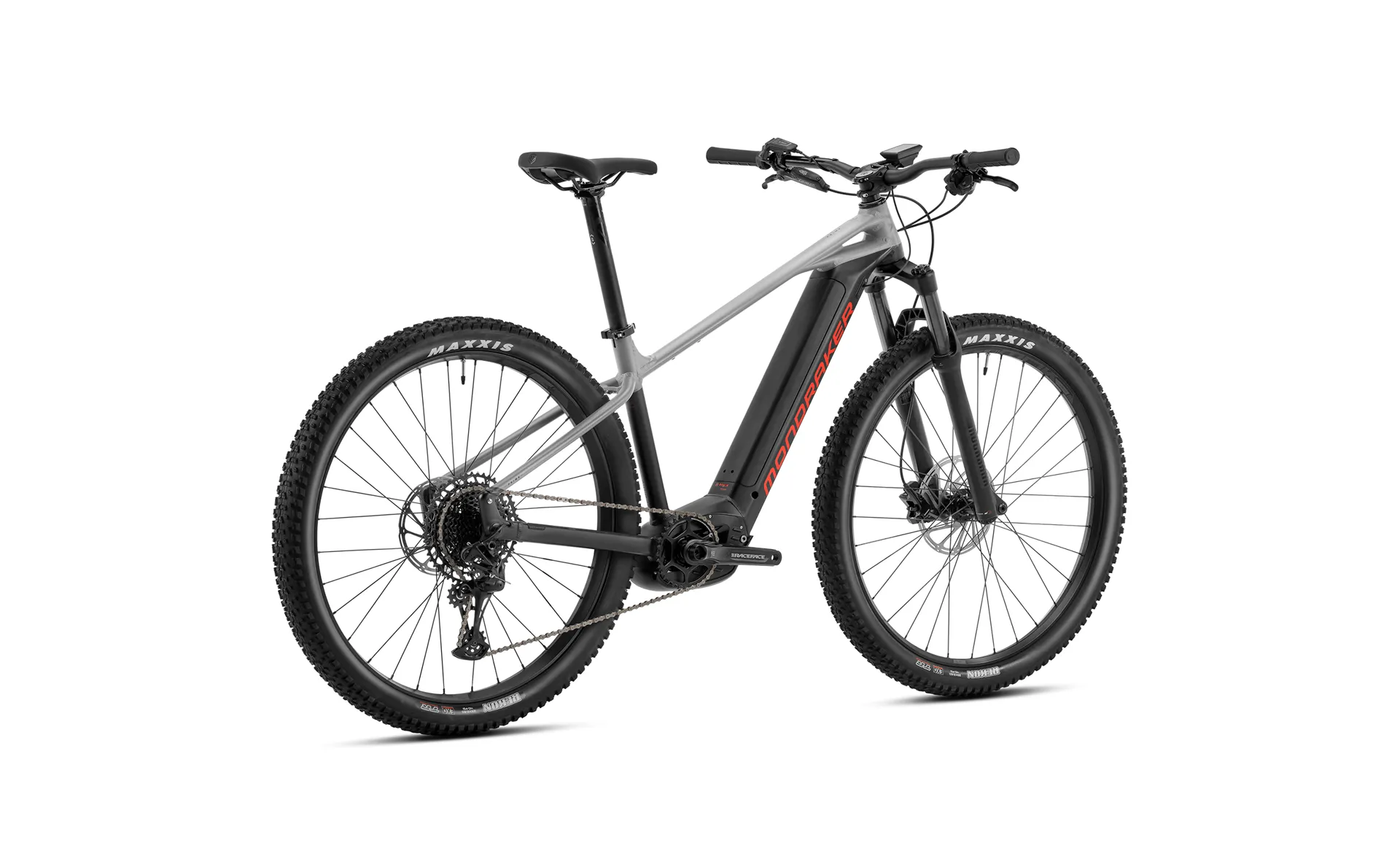

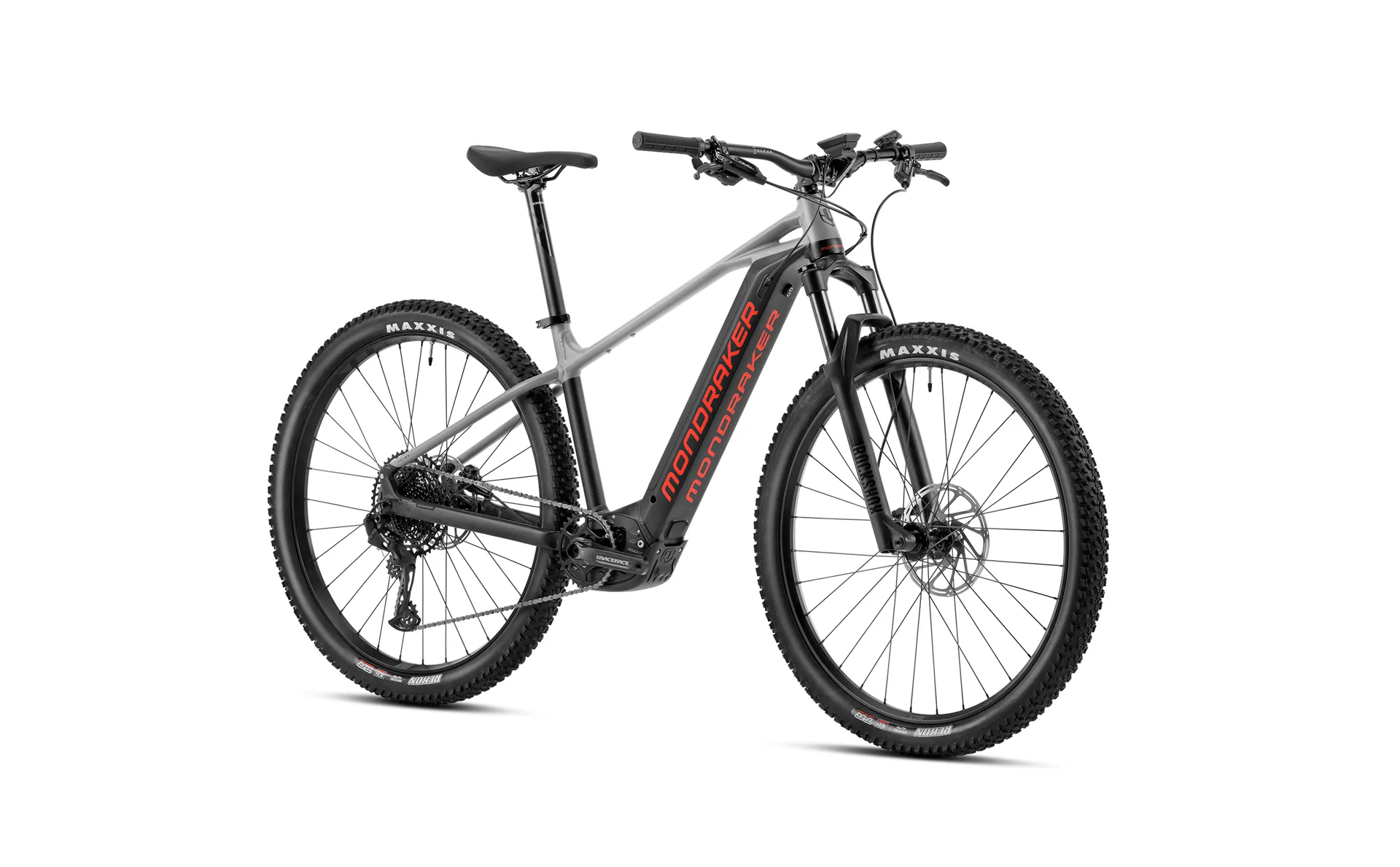

Mondraker Prime 29 - Black/Grey/Red

Brand:Mondraker

Code:010.2323

If you want to enter the world of light ebikes with a powerful motor, this is the bike for you. With its optimized Bosch Performance Line CX Cruise GEN4 motor offering ideal pedaling assistance, you can use the wireless Mini Remote, the System Controller and the Kiox 300 to manage the option modes and the range of the battery. Limitless and offering a world of possibilities, Mondraker has adapted our FORWARD GEOMETRY so that you can spend as many hours as you wish on the PRIME 29. Standout characteristics are comfort and light weight, which combine to let you have loads of fun on any type of terrain. Its RockShox Recon Silver RL fork with 120mm of travel opens up your options for adventure and will let you challenge yourself wherever you choose to ride.


BOSCH:

The smart system points the way to the digital future for eBikes. The eBike Flow app, the battery, the display, the control unit, the drive unit and the Bosch eBike ABS are fully connected in the smart system. Regular over-the-air updates keep them up to date and add new features. You can control all functions of the smart system via the eBike Flow app. Whether you’re on your way to work or on the trail at the weekend: The technically and visually precisely tuned components allow you to customise your riding experience and take riding enjoyment to the next level.

STEALTH ALLOY:

Encompasses all processes in the creation of the frame, from the industrial design to the specific production of each of its tubes with the calculation of the most precise details. Each tube and part is carefully designed to carry out a specific function while striving to achieve the lowest possible weight. Stealth technology is evolving every year with optimised shapes and internal updates to deliver the best riding experience in our aluminium frames.

FORWARD GEOMETRY:

has proven to be the pioneering geometric benchmark for the most advanced high-performance bikes, and this is one of our most important and unique proprietary technologies today. Every year we continue to refine the concept and for 2023 we have implemented slight geometry changes to improve performance even further, increasing riding efficiency and control in bike handling.

Technical Information

Technical specs

frame

Frame

Prime Xtralite 6061 Fully Butted Alloy, Forward Geometry, internal removable battery, tapered head tube, Boost 12x148mm rear axle, integrated dropout speed sensor

sizes

Sizes

XS: 380mm / S: 390mm / M: 430mm / L: 470mm / XL: 510mm

fork

Fork

RockShox Recon Silver RL 29, 120mm, Motion control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 32mm steel stanchions, 42mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload

headset

Headset

Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

stem

Stem

Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

handlebar

Handlebar

Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

grips

Grips

Onoff Twin, 1lock-on, 135mm

seatpost

Seatpost

Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 31.6mm, length 400mm

saddle

Saddle

MDK ebike black

front brake

Front brake

Sram Level T, 2 piece caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pad

rear brake

Rear brake

Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad

brake lever

Brake lever

Sram Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings

rims

Rims

MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes

spokes

Spokes

CN round stainless steel

front hub

Front hub

Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts

rear hub

Rear hub

Formula EHL148 Boost 12x148mm, sealed bearings, IS 6 bolts

front tire

Front tire

Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead

rear tire

Rear tire

Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead

crankset

Crankset

Race Face Aeffect ebike, 165mm

rings

Rings

Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD

chain

Chain

Sram SX Eagle, 12s, Powerlock

rear derrailleur

Rear derrailleur

Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1

shift levers

Shift levers

Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click

casette

Casette

Sram PG-1210, 11-50T, 12s

derailleur hanger

Derailleur hanger

Mondraker M068

weight

Weight

22,5 kg

display

Display

Bosch Kiox 300 / Bosch Led Remote

motor

Motor

Bosch Performance Line CX Cruise (25Km/h) GEN4

battery

Battery

Bosch Powertube 625Wh



Sizing Information
Frame sizeXSSMLXL
ASeattube length380mm390mm430mm470mm510mm
BToptube length600mm615mm645mm670mm700mm
CBottom bracket drop-60mm-60mm-60mm-60mm-60mm
DBottom bracket height318mm318mm318mm318mm318mm
EChainstay length455mm455mm455mm455mm455mm
FSeat tube angle73.5°73.5°73.5°73.5°73.5°
GEffective seattube angle73.5°73.5°73.5°73.5°73.5°
HHeadtube angle69°69°69°69°69°
IFork Offset51mm51mm51mm51mm51mm
JWheelbase1138mm1153mm1183mm1210mm1240mm
KHeadtube length110mm110m110mm130mm130mm
LReach410mm425mm455mm480mm505mm
MStack640mm640mm640mm658mm658mm
